Cut-away



Please click the thumbnail to view full size.  All models are built to 1:96 scale (1/8" = 1ft) unless otherwise stated

Interior structures are sometimes as important as the overall finished effect of a project, they may also have selling features or benefits that our clients need to be visible.

In order to accommodate both requirements a cut-away model is often the solution. They are photo realistic and appear complete from some perspectives whilst other views reveal otherwise hidden detail.



Full color pull apart model for 'GREEN VISTAS', a start-up charity that proposes to convert surplus shipping containers into housing for homeless Veterans.   Built at 1:24 (1/2 inch = 1 foot)

Donated on behalf of 'Blue Knights' Law Enforcement Motorcycle Club, FL. Chapter XXIX.



White pull apart study model of a themed Restaurant re-brand.

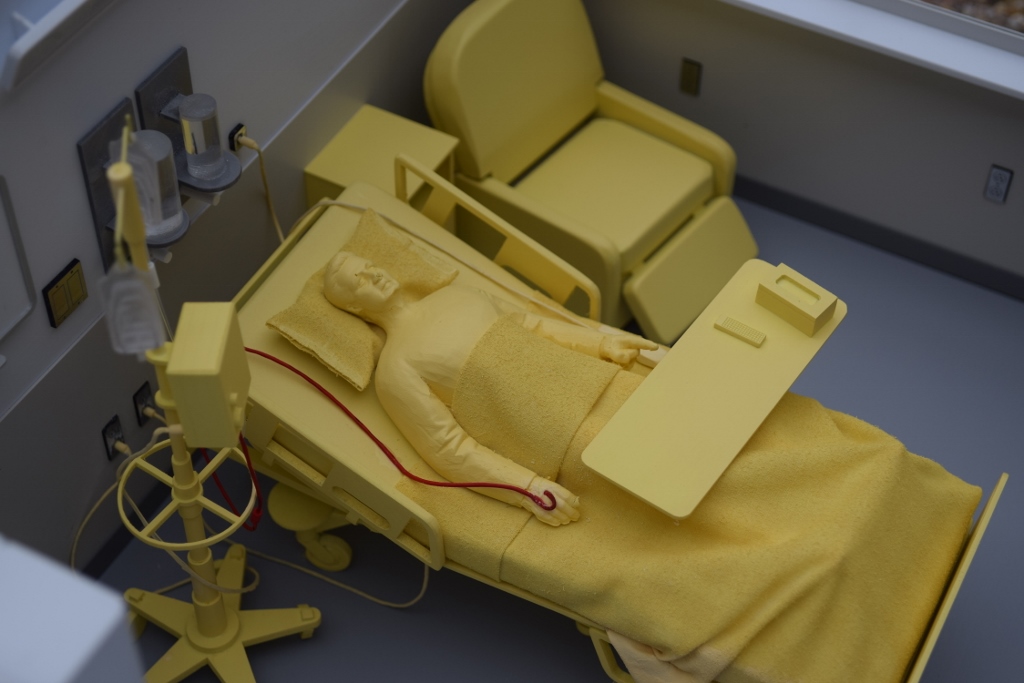

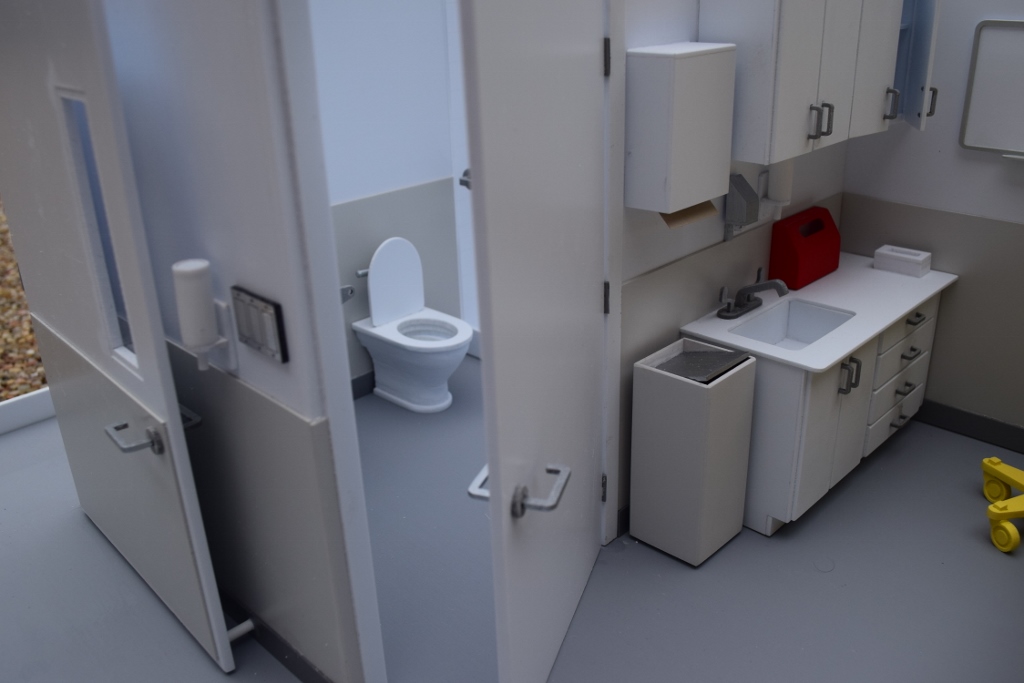

Generic patient room at 1" = 1' for Infection Prevention department at Sarasota Memorial Hospital

YELLOW area = Patient Zone, RED area = Aseptic Zone per WHO guidelines.





Insulwall, stand up precast concrete wall system, construction stages.

Ins5.jpg (44071 bytes)   Ins6.jpg (45061 bytes)   Ins7.jpg (32521 bytes)   Ins10.jpg (35158 bytes)

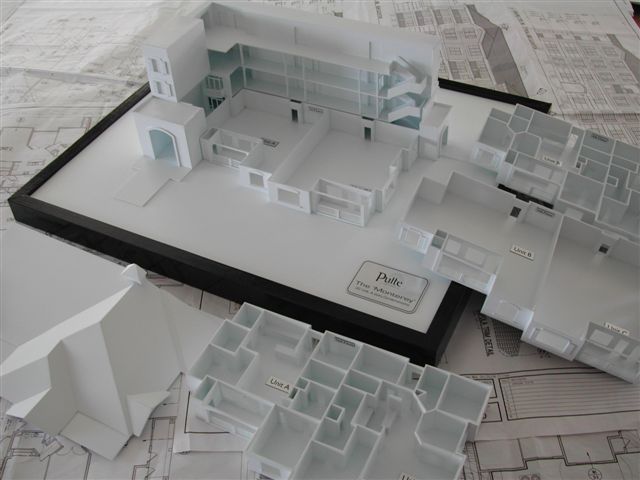

Pulte 'Monterey' Condominiuns, pull apart model. Showing entry Atrium and apartment floorplans

Pulte.jpg (50193 bytes)   Pulte1.jpg (51633 bytes)   Pulte2.jpg (47308 bytes)   Pulte3.jpg (48151 bytes)   Pulte4.jpg (47102 bytes)   Pulte5.jpg (44436 bytes)

Premiere Radiation Oncology, for Precise Construction



Good Samaritan Retirement Village (1" = 4')


The Gentry residence

Porch_elev.jpg (21820 bytes)   Rear_elev.jpg (20750 bytes)   Side_porch_elev.jpg (23353 bytes)   Rear elev.jpg (20750 bytes)


120' Diameter Geodesic Dome, United Church Structures.
